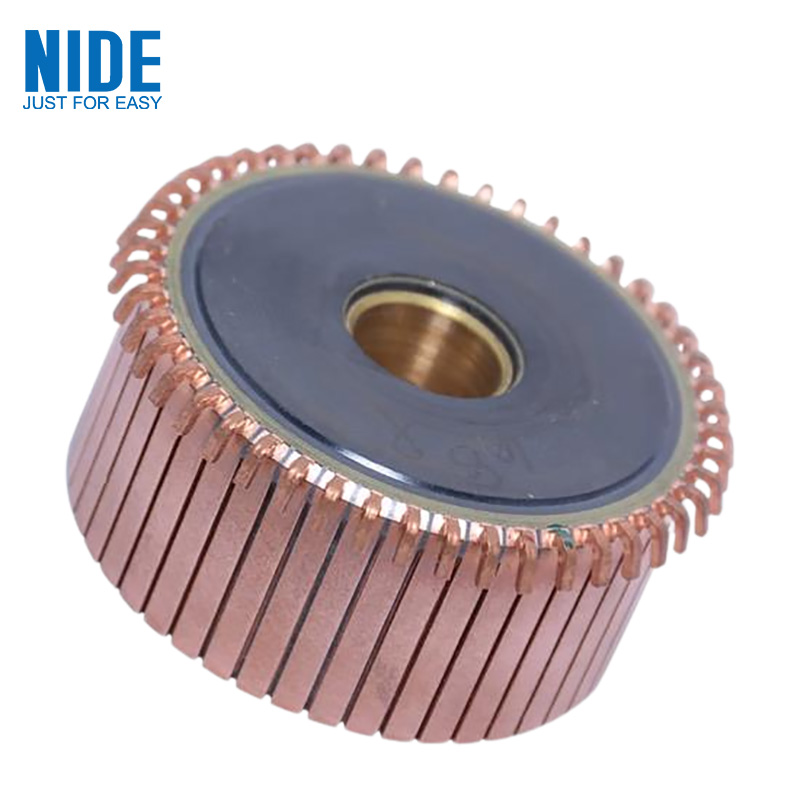

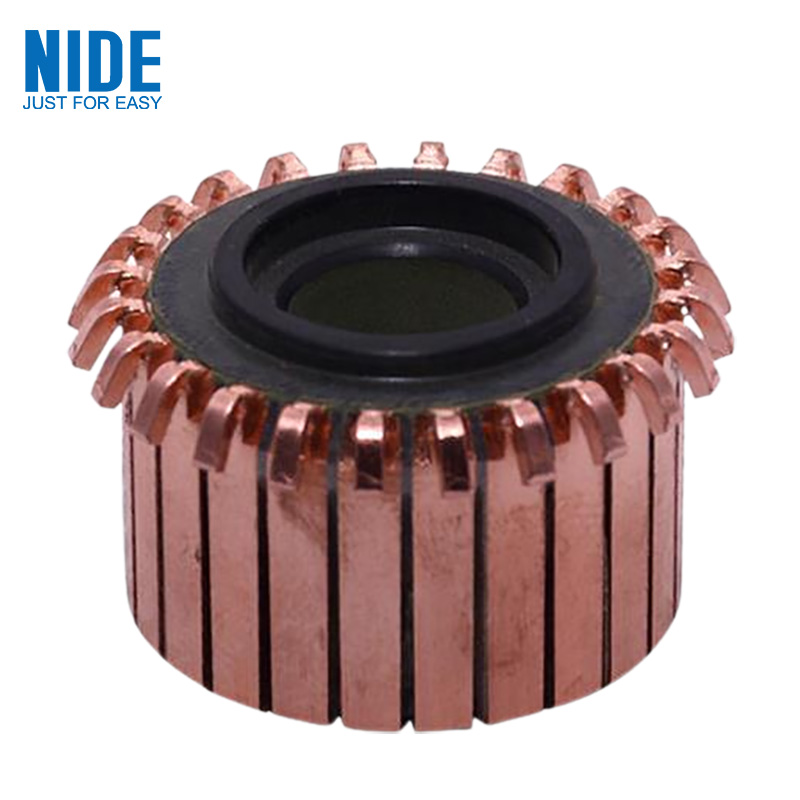

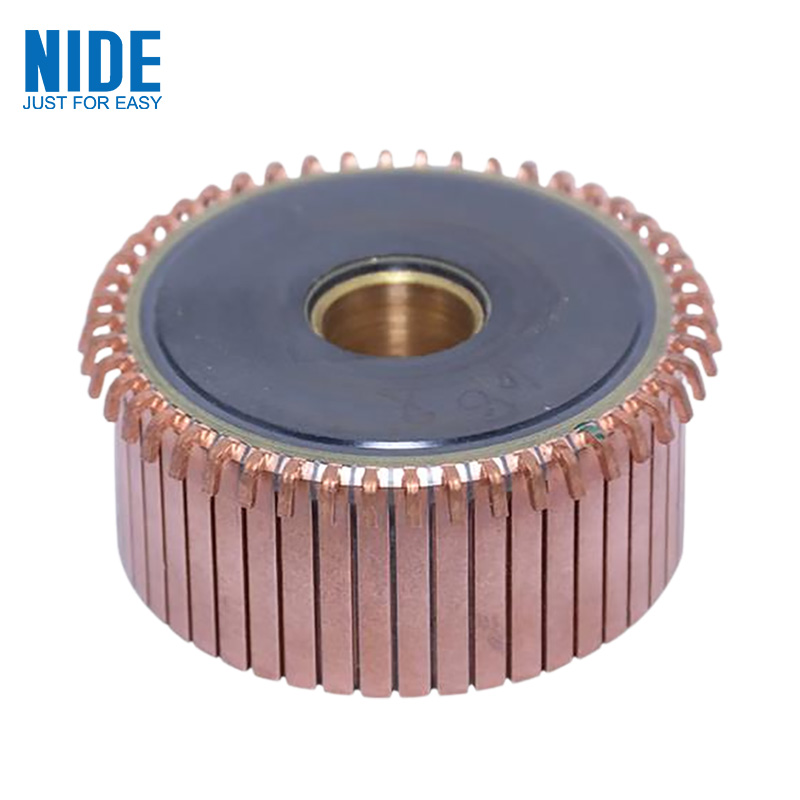

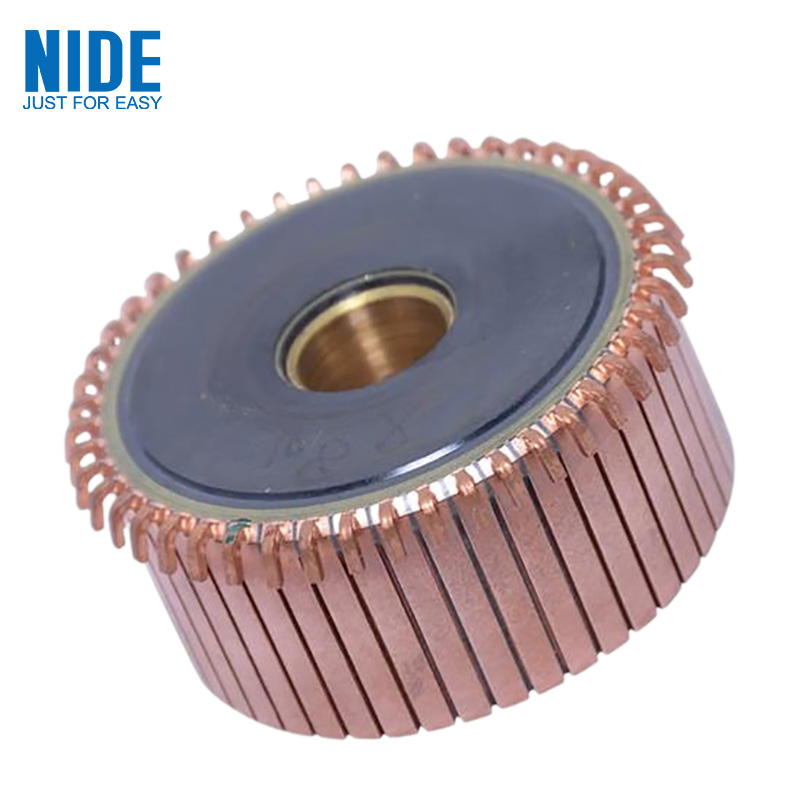

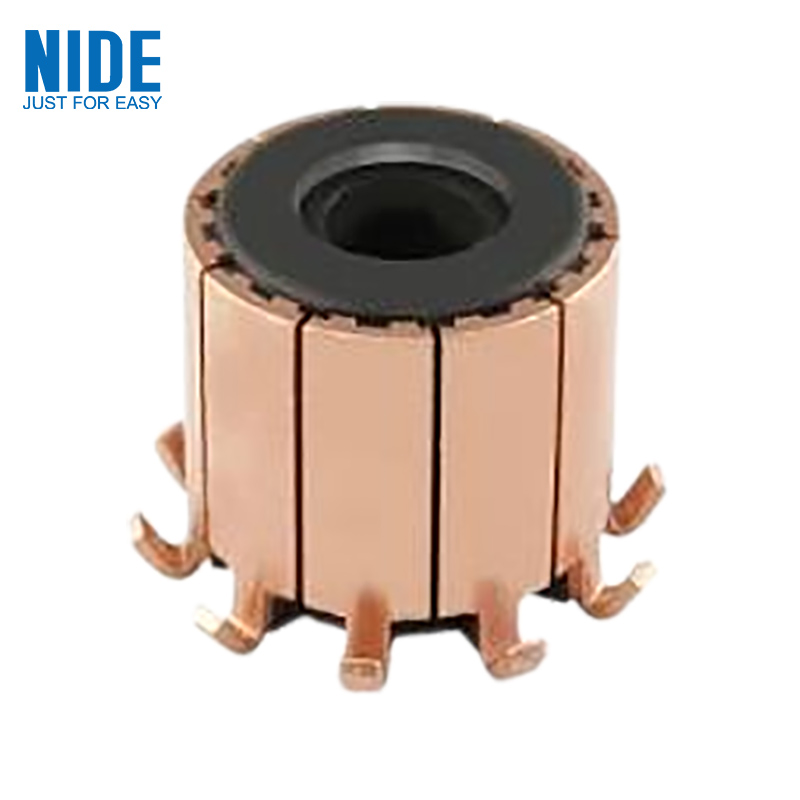

Kualitas Luhur Sareng Commutator Murah pikeun Motor

Kualitas Luhur Sareng Commutator Murah pikeun Motor Urang bisa nyieun nanaon nu commutators nurutkeun gambar Anjeun atawa sampel. 1.Commutators pikeun mesin rumah tangga 2.Commutators pikeun industri motor otomotif 3.Commutators pikeun parabot kakuatan 4.Commutators pikeun industri lianna

Modél:NDPJ-HXQ-03010

Kirim Pananya

Panjelasan Produk

Kualitas Luhur Sareng Commutator Murah pikeun Motor

1.Power Alat Commutatorspésifikasi teknis:

The end surface of the reversing seat facing the reversing panel is provided with a fixing groove, and the end surface of the reversing panel facing the reversing seat is provided with a fixing protrusion that fits with the fixing groove. A circular mounting hole is arranged in the middle, and a plurality of in-line reinforcing grooves are arranged at equal distances along the circumference between the outer circumferential surface of the circular mounting hole and the outer circumferential surface of the reversing seat, and one end of each reinforcing groove is They are all connected with the outer circumferential surface of the circular mounting hole, and the other end of each reinforcing groove is connected with the outer circumferential surface of the reversing seat. The outer circumferential surface of the fantasy panel is provided with a plurality of hooks at equal distances along the circumference.

The utility model is that: the high-precision automobile end-face commutator and the reversing panel are connected by a snap connection. If the reversing seat is damaged or the reversing panel is damaged, the replacement is relatively convenient, and the replacement is not time-consuming, and the replacement efficiency is improved. .

- Pérak tambaga jeung inténsitas tinggi, sanyawa molding diimpor, dina kualitas alus.
- Palayanan anu saé pikeun unggal palanggan.
- Alat deteksi anu sampurna sareng panguji kaayaan kerja anu dipercaya
- Nyadiakeun jasa OEM mumpuni.
- Harga kalapa sareng pangiriman gancang.

Ngaran Produk	Komutator Motor
Bahan	logam
Warna	Warna nangtung
tems pamayaran	TT, Paypal, jsb.
merek	pamundut customer
Waktos pangiriman	Numutkeun kuantitas pesenan
waktos sampel	7-10days, gumantung kana gaya produk jeung pengiriman barang
Fitur	Janten bébas tina batal (gelembung) langkung ti 1mm sareng retakan dina permukaan résin anu dibentuk, tapi liang hawa (jero: 1.4±0.1, rubak: 0.5±0.05) kedah ditolerir. Tes Tegangan: Bar ka bar dina 450V, 1s, sareng bar ka aci dina 1500V, 1min, moal aya karusakan atanapi percikan. Spin Test: Under 180±2 ℃, 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003max. Résistansi Insulasi: Résistansi insulasi langkung ageung tibatan 50MΩ handapeun 500V.
Pamakéan pikeun wewengkon	1.Commutators pikeun mesin rumah tangga: dryer bulu, mixer, vacuum cleaner, mesin cuci, sumber mesin jus, whisk, juicer, susu soy, sarta pikeun panerapan rumah tangga lianna. 2.Commutators pikeun industri motor otomotif: Mimitian , generator , Wiper , Air conditioner , jandéla listrik nyetir , Seat adjustment , Eunteung motor , marake éléktronik , kipas Radiator , steering éléktronik, steering headlight , Blower kipas, kipas manaskeun , Cooling radiator tank cai , jeung mesin éléktronik otomatis lianna. 3. Commutators pikeun parabot kakuatan: Weeding mesin, bor listrik, coét sudut, ragaji listrik, palu, mesin motong, ragaji listrik, planer jeung parabot listrik lianna. 4.Commutators pikeun industri lianna: Pompa, accu mobil, motor, numput parahu keur pelesir, Toys, panto listrik, parabot kabugaran, fotografi hawa jeung saterusna.

2. Parameter Produk (Spésifikasi)

Bagian No.	O.D (D)	I.D (d)	Total O D (D1)	Bar No(N)	Panjang bar (L1)	Panjang total (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Feature Jeung Aplikasi

Komutator ieu dianggo dina motor AC, motor fase tunggal, motor mobil, motor starter motor, motor alat listrik sareng motor khusus mikro.

1. Commutators pikeun mesin rumah tangga: dryer bulu, mixer, vacuum cleaner, mesin cuci, sumber mesin jus, whisk, juicer, susu kedelai, sarta pikeun panerapan rumah tangga lianna.
2. Commutators pikeun otomotif industri motor: Mimitian , generator , Wiper , Air conditioner , jandéla listrik nyetir , adjustment korsi , Eunteung motor , marake éléktronik , kipas Radiator , steering éléktronik, steering headlight , kipas blower, kipas manaskeun, Cooling radiator tank cai, jeung mesin éléktronik otomatis lianna.
3. Commutators pikeun alat-alat listrik: Mesin Weeding, bor listrik, coét sudut, ragaji listrik, palu, mesin motong, ragaji listrik, planer jeung alat listrik lianna.
4 Komutator pikeun industri séjén: Pompa, batré mobil, motor, pompa yacht, cocooan, panto listrik, alat kabugaran, fotografi udara jeung sajabana.
